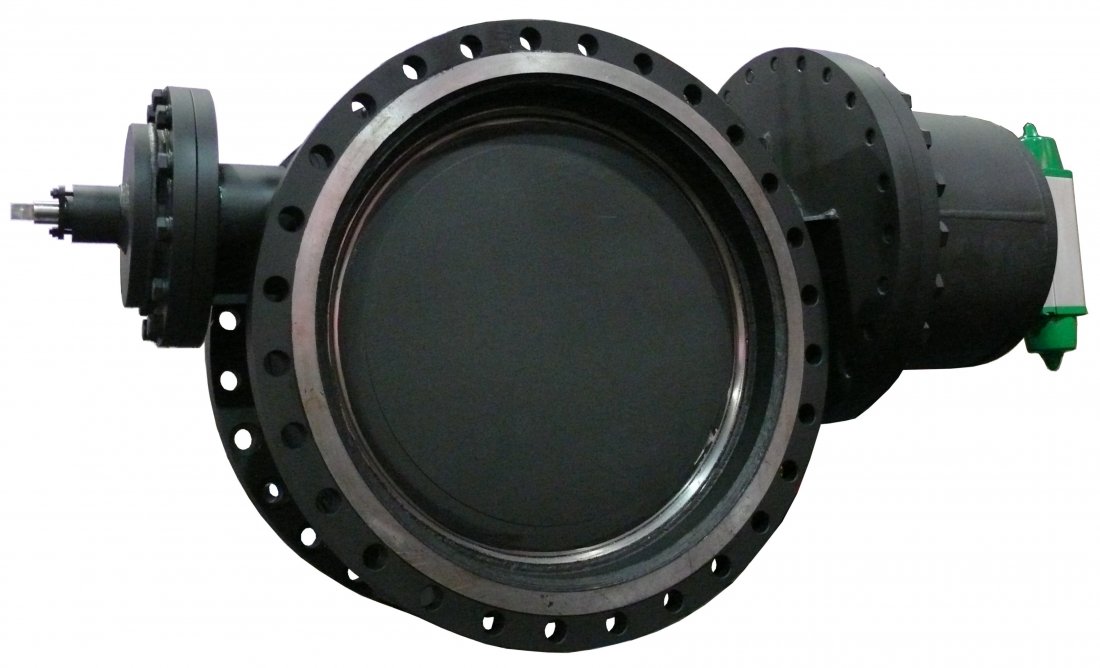

Turbo-Check
Check valves- Temperature range -196°C up to 600°C
- Pressure -1bar up to 100bar
Industry
Energy
Oil & Gas
Chemical and petrochemical industry
Food industry, paper mills
Heavy industry
Application
Steam, water, exhaust instalations
Gas, chemicals, oil, paper mills
Heavy industry
Body pattern
Lug (37916)
Double flange (31916)
Butt welded (32916)
Design
Double eccentric design
Metal seated construction (metal/metal)
Standards
Design acc to EN 12516-1, EN 12516-2
End connection acc to EN 1092-1, EN 1759-1, EN 12627
Face to face acc to EN558, DIN, API609, ASME/AISI, BS
Pressure testing acc to EN 12266 rate B, API 598, other upon request
Mounting flange for actuator acc to EN ISO 5211
Production range
Size DN150 up to DN2500 (bigger sizes upon request)
Pressure range -1bar (vacuum) up to 100bar
Connection PN2,5 up to PN100, Class150 up to Class600
Temperature range -196°C up to +600°C
Option
TA-Luft stuffing box
High temperature design
Quick cloasing design
Forged body to eliminate the risks allied to castings
ATEX
